Gravel Specialized S-Works Turbo Creo 2 SRAM RED / XX1 Eagle AXS 2026

Product Features

Road or gravel? 8 km or 5 hours? Uphill or downhill? Suffering or pleasure? More power or less weight? With the Creo 2, you no longer have to choose. It offers you everything. More power, long range, exceptional lightness, maximum tire clearance and the Future Shock 3.0: this bike revolutionizes its category and makes previously impossible rides possible.

EXCEPTIONAL AMPLIFICATION: The all-new TURBO SL 1.2 system offers unparalleled efficiency for a range of up to 5 hours. It develops 33% more power (320 watts) than its predecessor and delivers it at an ideal pedaling cadence for extraordinary sensations. With 43% more torque (50 Nm), power is instantaneous, allowing you to climb the steepest slopes in a flash. And in terms of silence, we have reduced the noise level by 40%. It is literally silent.

REDESIGNED FOR MORE CONFIDENCE: Original 700 x 47c tires, compatible with tires up to 29" x 2.2". The large tire volume ensures a smooth and reassuring ride even on the most uneven terrain. Thanks to the power of the Creo 2, you can fully exploit this volume without compromise for exceptional riding comfort.

FUTURE SHOCK 3.0: The Creo 2 is equipped with the Future Shock 3.0 system with 20 mm travel at the handlebar, reducing impacts by 53%. Future Shock keeps your hands and handlebar stable for a smoother ride and better control, allowing you to stay fast, safe and confident, while reducing fatigue on long rides.

PERFORMING GEOMETRY: The Creo 2 benefits from our most progressive geometry to date, allowing you to tackle all types of terrain, from open roads to technical gravel paths, with confidence. A more ergonomic endurance position offers optimal comfort, with the power needed to ride all day.

IT'S YOUR TURN! ON, DROP'ER DOWN: Lower your center of gravity with the dropper post for improved cornering and control on any terrain.

LOAD UP, RIDE OUT: Carry a little or a lot on any ride. Creo 2 accepts a variety of front, rear, and low-rider racks. Who said you can't have it all?

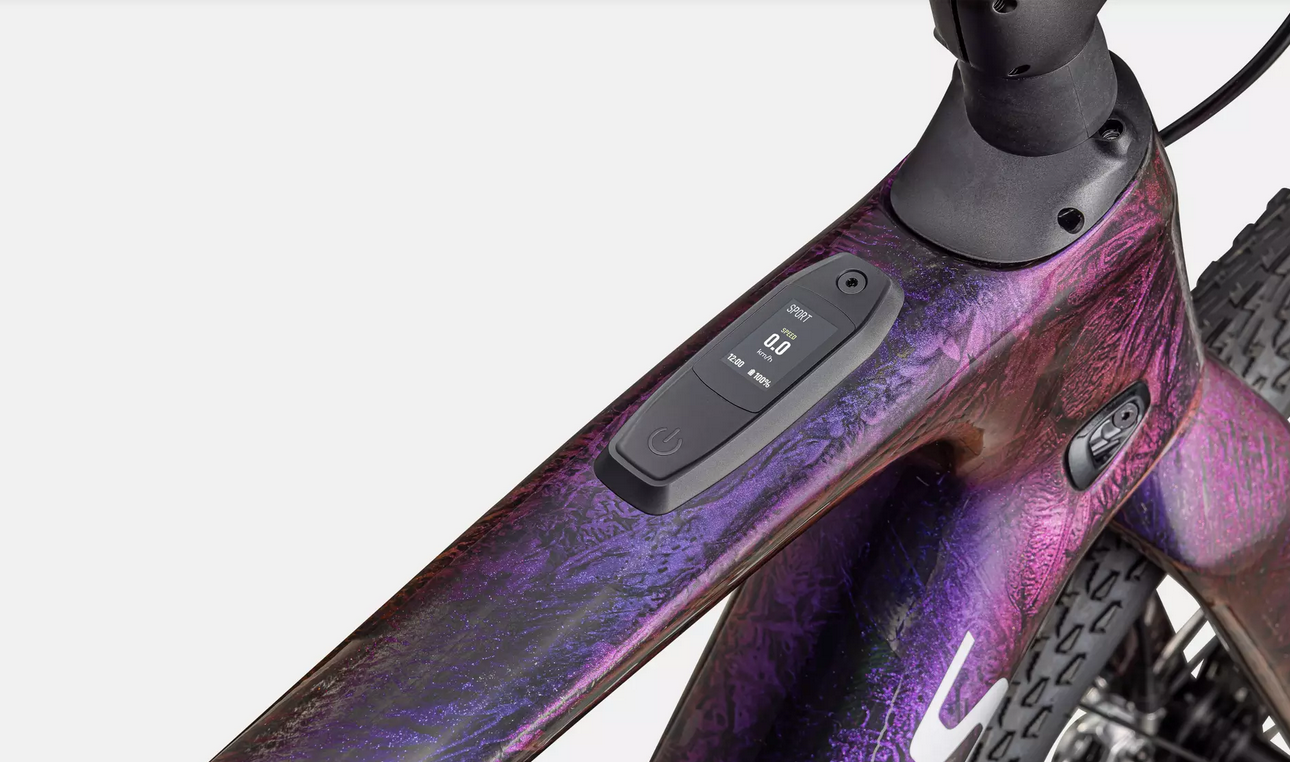

YOU'RE IN CONTROL: Our most advanced and intuitive e-bike control unit. Connects the bike, Turbo OS, the Specialized App, and the rider—all in one protected, easily visible display. With MicroTune, fine-tuning power output levels in real-time is at your fingertips, optimizing your range management and performance.

MASTERMIND TCU: The MasterMind TCU is the brain of the bike. Displaying all relevant info about your ride, it allows real-time tuning of support levels, enables over-the-air updates so your bike gets better over time, and seamlessly. integrates with the Specialized app for advanced tuning, on-trail diagnostics, customizable display, and more.

ALL-NEW SPECIALIZED APP: The Creo 2 fully integrates with our Specialized app and allows you to customize your motor's characteristics. You can record your rides, customize your displays, track your data, sync with other apps, and even thwart potential thieves with Turbo System Auto-Lock.

E-Bike

Motor

Specialized SL 1.2 Custom Lightweight Motor

Battery

Specialized SL1-320, fully integrated, 320Wh

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, with Handlebar Remote

Charger

Custom charger, 48V system w/ SL system charger plug

Wiring Harness

Custom Specialized wiring harness w/ charge port

Frame

Frame

FACT 11r carbon, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, 12x142mm

Seat Binder

Specialized Alloy, 31.8

Suspension

Fork

Future Shock 3.3 w/ Smooth Boot, 12x100mm thru-axle, flat-mount disc

Brakes

Front Brake

SRAM Red, hydraulic disc, 180mm

Rear Brake

SRAM Red, hydraulic disc, 160mm

Drivetrain

Shift Levers

SRAM Red eTap AXS

Rear Derailleur

SRAM XX1 Eagle AXS

Cassette

SRAM XG 1295, 12-speed, 10-50t

Chain

SRAM XX1 Eagle

Crankset

SRAM Carbon DUB crank arms

Chainrings

SRAM X-Sync Eagle, 107 BCD, 44T

Wheels & Tires

Front Tire

Tracer Pro, 700x47c

Front Wheel

Roval Terra CLX II, 25mm internal width, 32mm deep, 21h, Tubeless Ready, Roval LFD Hub with SINC Ceramic bearings, Centerlock disc, DT Swiss Aerolite spokes

Rear Tire

Tracer Pro, 700x47c

Rear Wheel

Roval Terra CLX II, 25mm internal width, 32mm deep, 24h, Tubeless Ready, Roval LFD Hub with SINC Ceramic bearings, Centerlock disc, DT Swiss Aerolite spokes

Inner Tubes

700x32/50mm, 48mm Presta valve

Cockpit

SeatPost

SRAM Reverb AXS XPLR Dropper, 49cm-52cm: 50mm drop

Stem

S-Works Future Stem w/ integrated computer mount

Handlebars

Roval Terra, carbon, 103mm drop x 70mm reach x 12o flare

Tape

Supacaz Super Sticky Kush

Saddle

S-Works Power Body Geometry

Product Details

Product ID

221798

Weight

Weight

12.96 kg (28 lb, 9.2 oz)



Geometries

	49	52	54	56	58	61
Crank Length	165mm	170mm	172.5mm	172.5mm
Handlebar Width	380mm	400mm	420mm	420mm	440mm	440mm
Stem Length	60mm	70mm	80mm	90mm	100mm	100mm
Saddle Width	155mm	155mm	143mm	143mm	143mm	143mm
Seatpost Length	350mm	350mm	400mm	400mm	400mm	400mm
Stack	578mm	578mm	595mm	607mm	638mm	663mm
Reach	365mm	374mm	383mm	392mm	401mm	410mm
Head Tube Length	108mm	120mm	153mm	180mm	90mm	90mm
Head Tube Angle	71°	71°	71°	71°	71°	71°
BB Height	270mm	270mm	270mm	270mm	270mm	270mm
BB Drop	80mm	80mm	80mm	80mm	80mm	80mm
Trail	62mm	62mm	62mm	62mm	62mm	62mm
Fork Length	405mm	405mm	405mm	405mm	405mm	405mm
Fork Rake	55mm	55mm	55mm	55mm	55mm	55mm
Bottom Bracket – Front Wheel Axle	600.1mm	609mm	623.8mm	636.6mm	656.2mm	673.8mm
Chainstay Length	435mm	435mm	435mm	435mm	435mm	435mm
Wheelbase	1022mm	1031mm	1046mm	1059mm	1079mm	1097mm
Horizontal Top Tube Length	531mm	540mm	554mm	572mm	590mm	613mm
Standover Height	731mm	743mm	773mm	793mm	824mm	852mm
Seat Tube Length	410mm	430mm	470mm	500mm	530mm	560mm
Seat Tube Angle	74°	74°	74°	73.5°	73.5°	73°
