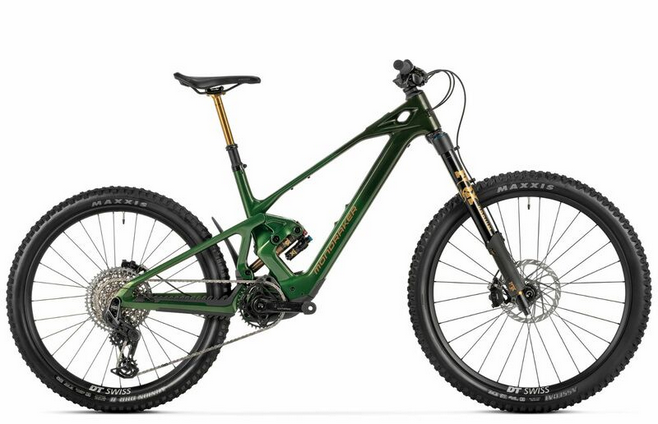

Mondraker Zendit RR S Electric Mountain Bike - Hunter Green 2026

MONDRAKER ZENDIT: The New e-MTB Standard

Discover the ZENDIT, the most powerful e-MTB ever designed by Mondraker. The result of 11 years of innovation and the expertise of Mondraker Factory Racing, the ZENDIT is not just an electric bike: it's a war machine designed to conquer impossible climbs and dominate the most challenging descents.

Free, powerful, and instinctive, it transforms every alpine challenge into an experience of absolute control.

Ultimate Integration: Avinox System & Stealth Air Carbon
Rather than adapting an existing frame, Mondraker designed the ZENDIT around the revolutionary Avinox motor system.

• Next-Generation Stealth Air Carbon Frame: State-of-the-art manufacturing using 6-axis CNC machines for the first time for surgically precise drilling and finishing, replacing manual processes.
• Integrated Architecture: A perfect fusion of motor, battery, and carbon for uncompromising stiffness and aesthetics.

ZERO Kinematics: Fully Revised for Electric
The iconic ZERO suspension system has been completely revised to harness the phenomenal torque of the Avinox system.

• More Support, More Action: A more active suspension that transmits every watt to the ground while maintaining exceptional traction.
• Optimized Anti-Squat (105%): Consistent pedaling efficiency, ideal for long travel.
• Braking Traction (Anti-Rise 99%): The rear wheel stays glued to the ground during hard braking, without affecting the suspension.

Racing Geometry and Tailored Proportions
The ZENDIT adopts the "Proportionate Design" concept: the riding sensations are identical, whether you ride in size S or XL.

• Mullet Configuration (29"/27.5"): Standard for maximum maneuverability in technical terrain.
• Full 29" Option: Thanks to the lower flip-chip, switch to 29" at the rear without altering the kinematics or bottom bracket height (+7mm chainstay).
• Proportional Chainstays: 450 mm (S, M, M/L) and 455 mm (L, XL) for a perfect center of gravity balance.

High-Performance & Durable Details

• DH Heritage: The ZENDIT uses the pivot system from the World Cup Summum. Enduro Max bearings combined with double rubber seals guarantee record longevity against the elements.
• FOX Collaboration: Mondraker and Fox have developed specific settings for the ZENDIT. Whether with the Float X (RR / RR S) or the monstrous Float X2 (XR), the 27% progression is perfectly calibrated for the new air volumes.

Highlights of the Mondraker Zendit RR S

• Stealth Air Carbon frame with 6-axis CNC finish
• DJI Avinox motorization offering optimized power and torque
• 800 Wh battery
• 170 mm travel at the front and 165 mm at the rear
• Updated Zero Suspension kinematics
• Mullet 29"/27.5" configuration compatible with 29"/29" via Flip Chips
• Oversized Enduro Max pivot bearings with two additional seals
• Fox Kashima suspensions including the Podium Inverted Fork
• Sram AXS T-TYPE Electronic drivetrain directly connected to the motor (no separate battery for the derailleur)
• SRAM MAVEN brakes for powerful and long-lasting stopping power

Specifications

• Frame: Zendit Stealth Air full Carbon, updated Zero suspension system, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, sealed MAX capacity bearings, oversized 15mm axles, exclusive plastic motor covers.
• Sizes: S (380mm) / M (410mm) / ML (435mm) / L (460mm) / XL (490mm).
• Rear Shock: Fox Float X Factory Kashima Evol LV 205x65mm. 2-position compression lever (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm lower bushings.
• Shock Settings: CS 30 compression, 1.1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacer.

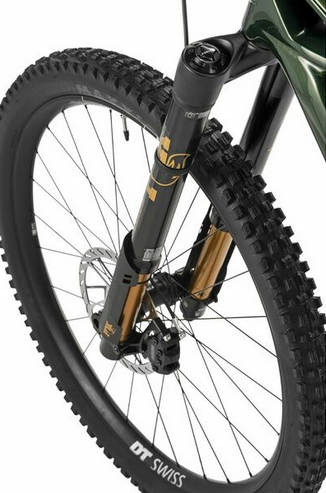

• Fork: Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer, Boost 20x110mm axle, 44mm offset. High and low-speed compression and rebound adjustments, air preload.
• Headset: Acros custom ZS56/ZS56, 1-1/8" - 1.5", internal cable routing, sealed caps, no blocklock.
• Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm diameter.
• Handlebar: Onoff S9 1.0 Carbon, rise: 25mm (38mm for L and XL sizes), width: 800mm, 8º backsweep, 5º upsweep, 31.8mm diameter.
• Grips: Onoff Desert Pro, CNC lock-on, 135mm (thicker version for L and XL sizes).
• Seatpost: Fox Transfer Factory Kashima internal, adjustable travel, 31.6mm diameter. (S: 95-120mm | M: 125-150mm | ML/L: 155-180mm | XL: 185-210mm).
• Saddle: Ergon SM10 E-Mountain Black.
• Brakes: Sram Maven Silver, 4-piston calipers (18mm), HS2 200mm IS 6-bolt one-piece rotors, sintered metal pads on steel backing.
• Brake Levers: Sram Maven Silver, SwingLink technology, lever pivot bushings, tool-free reach adjustment.
• Wheels: DT Swiss aluminum rims with DT Hybrid II Straightpull spokes and DT ProLock Squorx ProHead nipples (three-cross lacing).
• Front Hub: DT Swiss 350, 15x110mm Boost, IS 6-bolt rotor mount.
• Rear Hub: DT Swiss 350, 12x148mm Boost, IS 6-bolt rotor mount, Sram XD Steel freehub body, Ratchet DEG DF 72T system.
• Front Tire: Maxxis Assegai 29x2.5WT, Tubeless Ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead.
• Rear Tire: Maxxis Minion DHR II 27.5x2.5 WT, Tubeless Ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead.
• Cranks: ethirteen Helix Race espec alloy, 155mm length (all sizes).
• Chainring: Sram XX Eagle 36T T-Type, 104BCD, steel, 55mm chainline.
• Chain: Sram GX Eagle T-Type, 12-speed, with Powerlock.
• Rear Derailleur: Sram X0 Eagle AXS T-Type, 12-speed.
• Shifter: Sram Eagle AXS Pod Controller Rocker Paddle with discrete clamp, 12-speed.
• Cassette: Sram XS 1275, 10-52T, T-Type, 12-speed.
• Motor: Avinox Drive Unit.
• Battery: Avinox 800Wh with Avinox 4A charger.

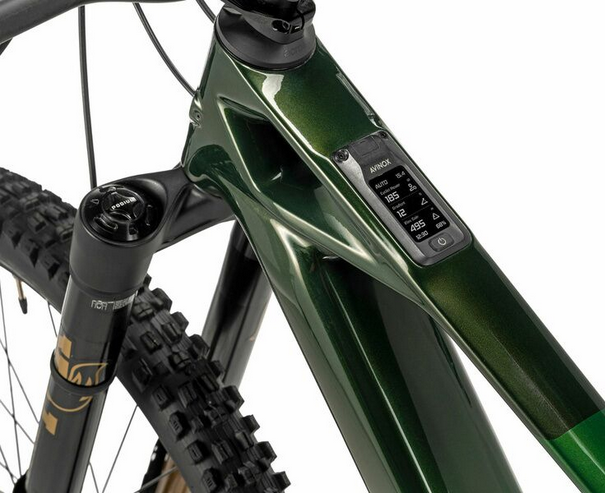

• Display / Controls: Avinox DP100 Display / Avinox BC100 wireless controllers (left and right).
• Weight: 22.9 Kg.
