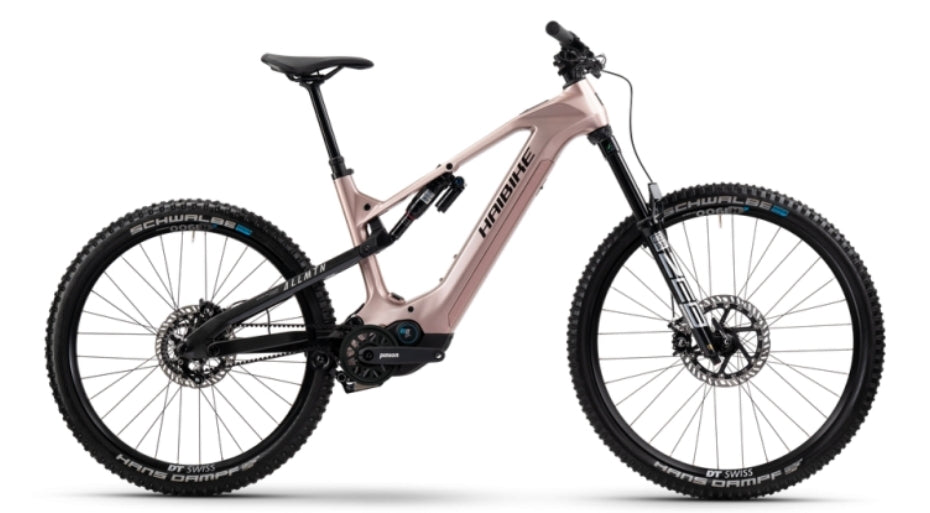

HAIBIKE ALL-TERRAIN MTB cf 11 2025
HAIBIKE ALL-TERRAIN MTB cf 11 2025
Couldn't load pickup availability
Description
Reach the highest peaks with maximum enjoyment! The new ALLMTN CF 11 TRN/IQ offers this and much more. This full-suspension electric mountain bike embodies a new riding experience, unique in our range. Its main asset: the integrated motor-gearbox unit (MGU), a cutting-edge technology that combines motor and gearbox in a single housing. Thanks to its mullet configuration, short chainstays, and optimized kinematics with 160 mm of front and rear travel, you'll enjoy a completely new and intuitive riding experience. With its 800 Wh battery, even the longest alpine climbs become a breeze, while high-performance Magura disc brakes bring you safely back to the valley. Conquering the highest peaks has never been so exhilarating.
Frame: ALLMTN High Carbon Uni (29/27.5)

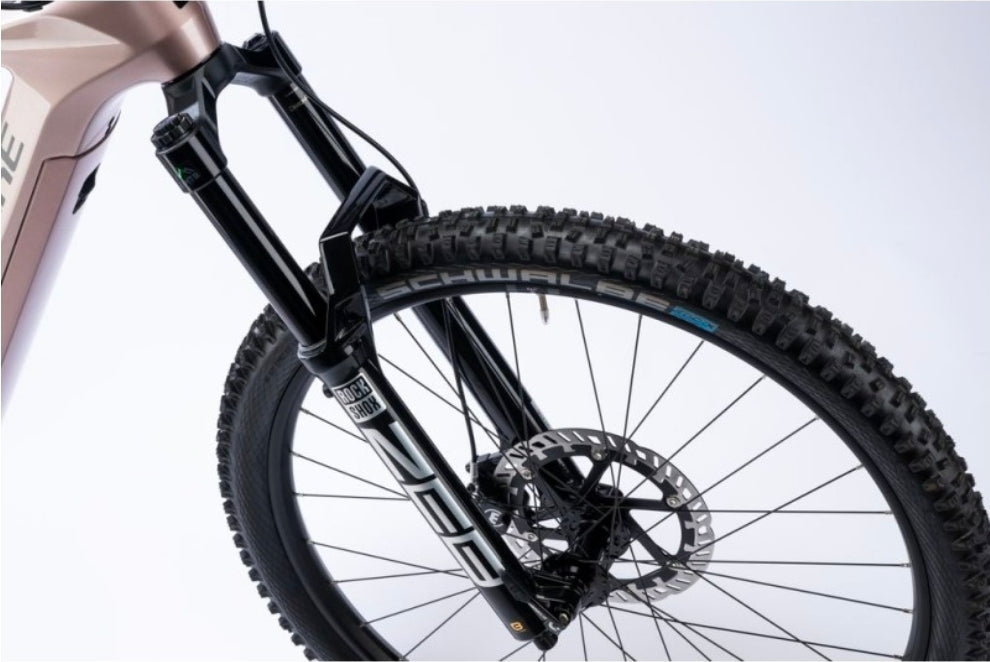

Fork: Rockshox ZEB Ultimate Charger 3.1 RC2 160 mm

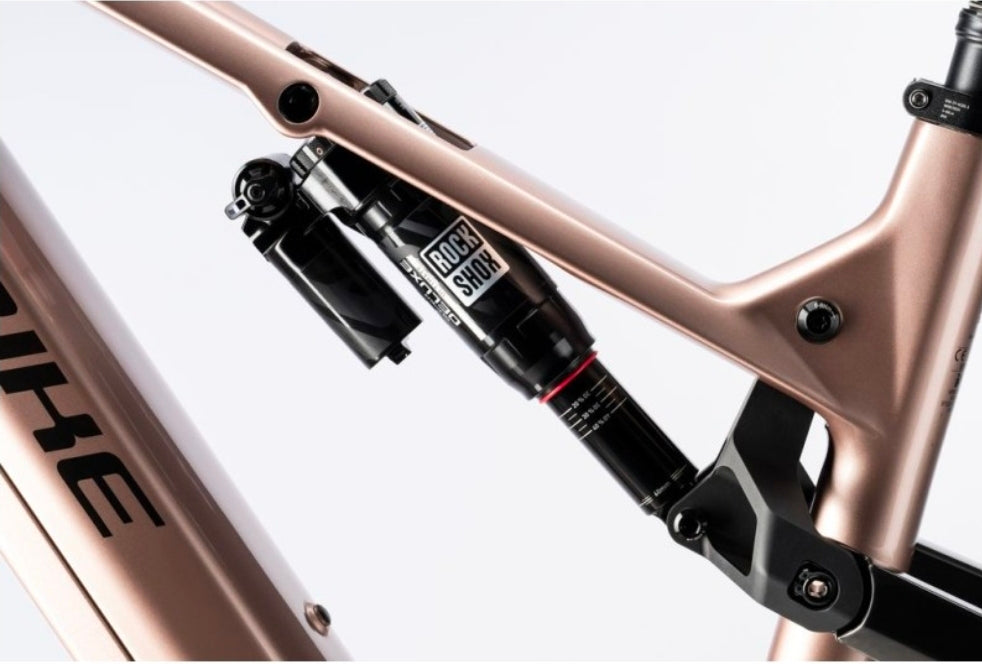

Shock: Rockshox Super Deluxe Ultimate RC2T 230x60mm

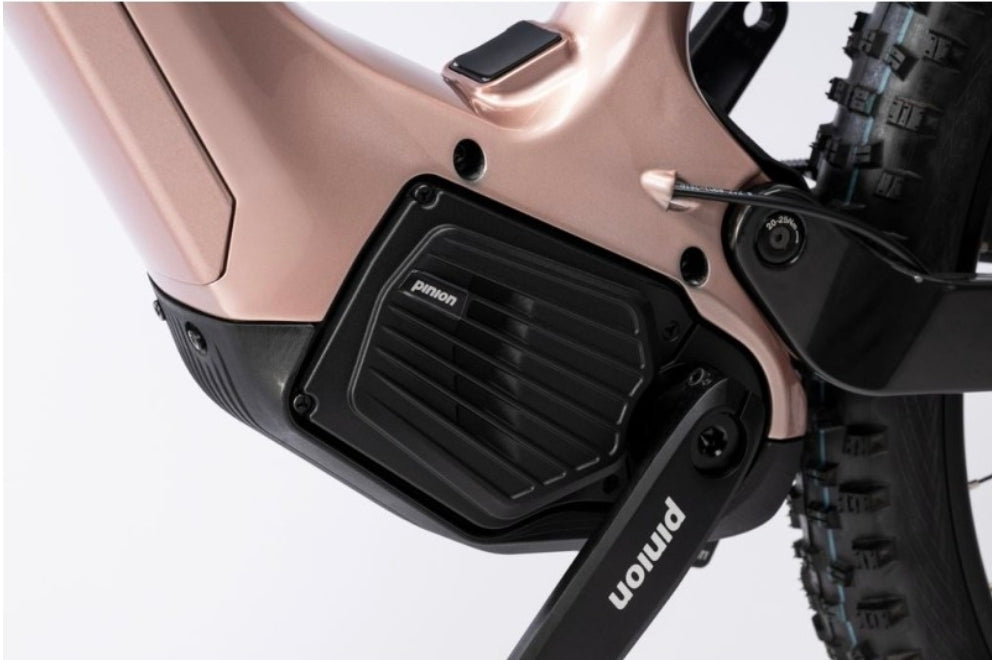

Motor: Pinion E1.12 MGU 85 Nm
Battery: Pinion InTube 800 Wh
Charger: Pinion FIT 48 V Standard Charger
Display: Pinion FIT Master Node Display + Remote Pure
Seat Clamp: Custom 34.9 mm
Stem: Truvativ Descendant Dia. 35 mm, L: 40 mm, A-head
Saddle: Selle Royal Vivo 1216HRN
Brakes: Magura MT5 hydraulic disc brake, 4 pistons 203 mm
Headset: Acros AMX-002/3 Mod56/66, adjustable reach +/-5 mm

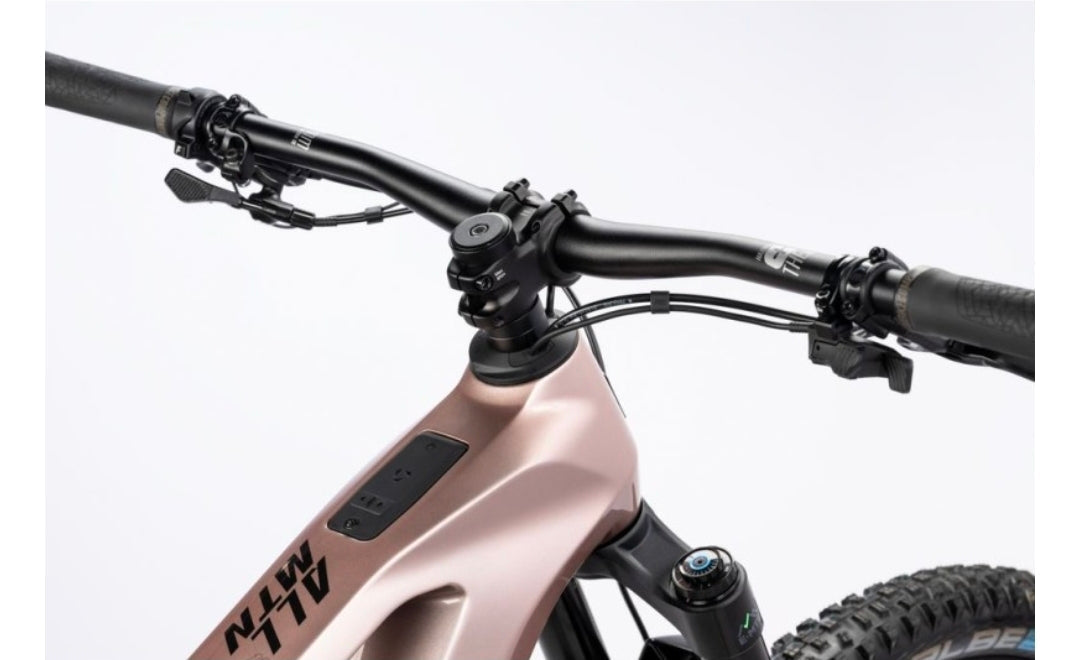

Handlebar: Haibike TheBar++ Dia. 31.8 mm
Grips: Veil
Dropper Post: Limotec A4H, 34.9 mm diameter, travel: 150 mm

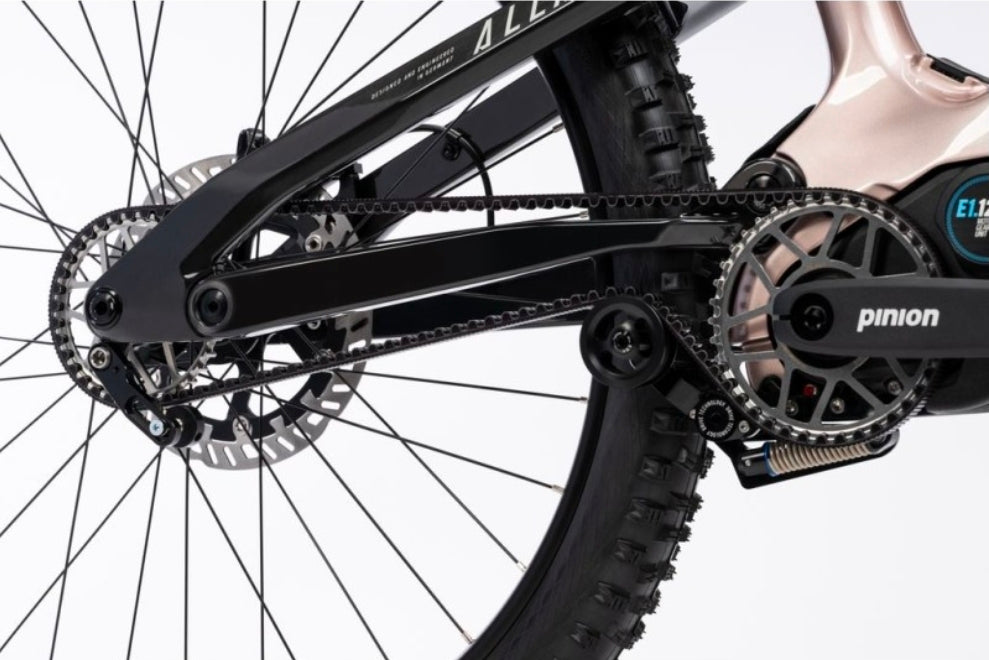

Chain: Gates Belt Carbon Drive Belt CDX, 120 teeth
Rear Derailleur: -
Shifter: Pinion Triggershift Smart Shift TE1
Cassette: Pinion Gates Carbon Drive CDX 9 spline
Crankset: Pinion Forge 165 mm crankset + GATES CDX 165 front sprocket
Number of gears: 12
Tires: Continental Kryptotal-Fr, Enduro Soft 60-622
