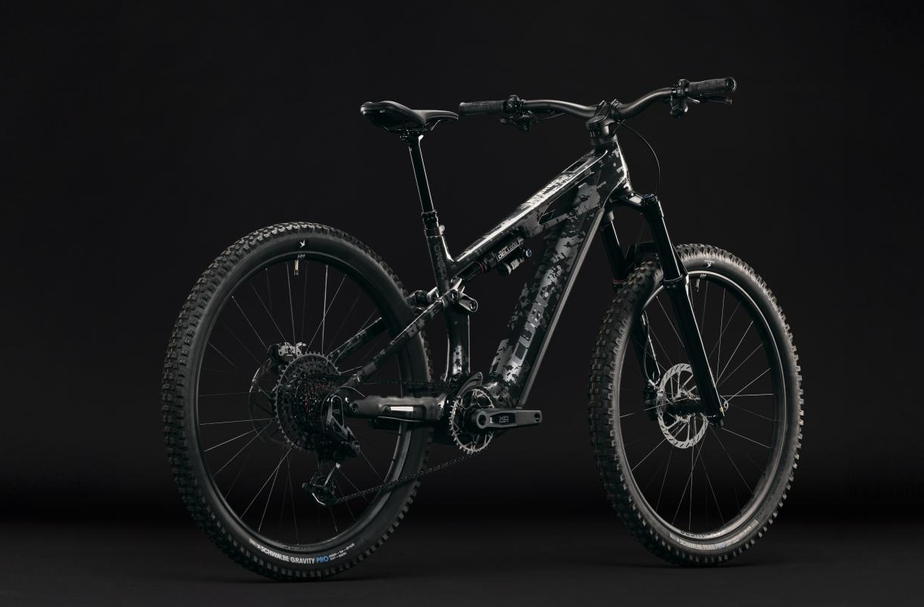

How would you design the ultimate trail e-MTB? Here’s ours: the Stereo Hybrid ONE44 HPC Super TM. We started by fitting a 150mm RockShox Zeb Ultimate fork to the front of our high-performance carbon frame, and added a Super Deluxe Ultimate shock for 140mm of rear wheel travel. The combination ensures the Newmen Beskar 30 TRQ wheels, shod with 2.5-inch Schwalbe Magic Mary and Albert tyres, get plenty of grip. Which is handy, because your pedal effort, fed through the Sram X0 Eagle 1x12 drivetrain, is supplemented by smooth, controllable power courtesy of the Avinox M2S motor with 800Wh removable battery and DP100 controller. A remote dropper post and the progressive power of Sram Maven Ultimate hydraulic disc brakes complete the picture. It’s ready for any trail, anywhere
CUBE chassis technology meets the Avinox M2S in the Stereo Hybrid ONE44 HPC, for a perfect synergy of controllable performance. With up to 150Nm of torque, 1500W peak power, an 800Wh removable battery and a sleek top tube-mounted controller with display, the motor delivers both the power needed for tough climbs and the subtlety required for technical trails. The high-performance carbon front triangle and aluminium rear triangle are the perfect complement to this engineering masterpiece, offering 150mm of travel at the front and 140mm at the rear. An adjustable headset gives you control, advanced internal cable routing highlights the frame's clean lines, the Direct Mount chain guide ensures smooth operation and there's a future-proof UDH derailleur hanger. Plus, the frame is X-Connect compatible, allowing you to easily plug in a compatible ACID front light. It's ready for anything.
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Color
Graphiteglitch´n´grey
Available sizes
Size Split: 27.5: S // 29: M, L, XL
Suspension
Fork
RockShox Zeb Ultimate Charger 3.2 RC2 Air, Tapered, 15x110mm, 150mm
Shock
RockShox Super Deluxe Ultimate, 230x60 (27.5: 210x55mm), Rebound LSC/HSC Adjust, 2-Position Lever
Shock mounts
Front: 30x8mm, Rear: DU-Bushing 12.7mm
Electric Assist
Motor
Avinox M2S max. 130Nm (Boost 150 Nm)
Battery
Avinox 800Wh removable
Display
Avinox DP100 Curved
Control
Avinox BC100 left+right
Charger
Avinox 12A
Drivetrain and braking
Brakes
Sram Maven Ultimate, Hydr. Disc Brake (200/200)
Shifters
Sram AXS™ Pod Ultimate Controller
Rear derailleur
Sram X0 Eagle AXS™ Transmission, 12-Speed
Crankset
Sram X0 Eagle™ E-MTB Crank, 36T
Chain guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cassette
Sram XS-1295, 10-52T
Chain
Sram X0 Eagle™ Transmission
Wheels
Wheels
Newmen Beskar 30 TRQ base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tire
Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5
Rear tire
Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
Components
Handlebar
Race Face ERA 35
Stem
CUBE Performance Stem E-MTB 35, FPI-Link
Grips
ACID Endure
Saddle
ACID Venec EMTB Trail 140
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Headset
Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Accessories
Pedals
ACID PP MTB
Weight
Bike weight
24.4 kg
Maximum rider weight
125 kg
Maximum loaded weight
150 kg
